HPT-300 & HPT-500
HPT-300 & HPT-500
The HPT-300 & HPT-500 are microprocessor controlled benchtop plasma treatment systems which are ideally suited to surface activation, cleaning and modification of a wide range of materials including polymers, metals, glass and ceramics.
Available in single or dual gas inlet versions and with onboard gas mixing manifold, the HPT-300/500 systems are able to handle a wide range of gases for optimised treatments, including air, oxygen, hydrogen, argon, nitrogen and many others.
An optional vapour delivery inlet extends the use to liquid precursors and a corrosion-resistant version expands the choice even further to address specific material treatments including;
Each system is supplied with a 5.7-inch colour touchscreen provides a rich, user-friendly interface. Variables such as gas flow rate, pressure, power level and plasma processing time can be freely set and then stored to produce a fully interlocked process cycle from a single keypress. A handy status display and end of process audible alarm informs the user of every step in the process.
Surface Activation Example
Material : PEEK
Oxygen Plasma
60 seconds
Before plasma treatment
After plasma treatment
Plasma Environment
Vacuum chamber & power
The HPT-300 system features a 200mm x 200mm (~12.5L) rectangular plasma process chamber in stainless steel with vacuum compatible materials throughout.
The HPT-500 feature a 240 x 240mm (~23L) rectangular plasma process chamber respectively. Both models feature removable parts/carrier trays which allow treatment of larger parts or many more smaller parts per batch.
Our proprietary, high stability HPS plasma generator is continuously variable over the entire 0-300W power range rather than being limited to discreet levels, delivering much finer control when processing delicate materials.
Benefits
Versatility
The base model of each system has a single gas inlet and optional second gas or vapour delivery inlet. The units can be prepared so that either option can be added at a later time if required, ensuring that future requirements can be accommodated without expensive reconfiguration.
Repeatable and Reliable
With precision digital mass flow controllers and integrated pressure gauge, the HPT-300 & 500 models deliver unmatched reliability and repeatability by removing common errors in gas flow and gas type settings which will be familiar to users of equivalent equipment that utilise manual needle valves.
Benefits
Compact benchtop units
User friendly
TFT interface
Recipe store
Fast treatment time
Precise
Repeatable
No hazardous emissions
Specifications
Technical Specifications
HPT-300 / HPT-500 Plasma Treatment Systems
ENCLOSURE
Dimensions
HPT-300 - W 533mm x H 466mm x L 615mm (+50mm on rear for cables)
HPT-500 - W 533mm x H 600mm x L 615mm (+50mm on rear for cables)
Weight
HPT-300 - ~40kg
HPT-500 - ~45kg
CHAMBER
Material
Stainless Steel
Form
Rectangular
Dimensions
HPT-300 - 200mm W x 200mm H x 320mm L
HPT-500 - 240mm W x 240mm H x 405mm L
REMOVABLE PARTS CARRIER
Material
Aluminium
Material options
Stainless steel
Form
Flat tray
Options
Multi-level shelf/electrode
Dimensions
HPT-300 - 190mm W x 310mm L, others to suit application
HPT-500 - 200mm W x 370mm L, others to suit application
PLASMA POWER SUPPLY
Power
HPT-300 - 0-250W, continuously variable output
HPT-500 - 0-300W, continuously variable output
Frequency
40 kHz
PROCESS CONTROL
Interface
5.7” Colour TFT with recipe store
Gas channels
x1 MFC
Gas channel options
x2 MFC or x1 MFC and x1 vapour inlet
Vent inlet
x1
Vent inlet options
soft ventilation option
Connections
6mm compression or 1/4" compression
Process timer
1sec – 99.59min
Recipe store
Stores up to 4 x recipes with individual parameters
Pressure gauge
Pirani sensor
Vacuum pump
6 to 15 m3/hr pumping speed
Vacuum pump options
2-stage rotary pump (air/inert gas), PFPE rotary pump (oxygen compatible), dry pumps. All pumps include exhaust filter and connections
SERVICES
Electrical
90-250 VAC, 50-60Hz, 1200-1500 VA (including pump), fused 6.3 A T / 10 A T
Power cord
Suited to region
Compliance
CE – UKCA - ROHS - WEEE
**Henniker strive for continuous improvement and specifications are subject to change without notice
Product Brochure
HPT-300 Product Brochure
The HPT-300 is a microprocessor-controlled benchtop plasma treatment system which is capable of treating larger samples or more samples per cycle and includes many application specific configurations.

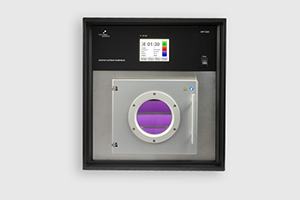

HPT-500 Product Brochure
The HPT-500 is a microprocessor-controlled benchtop plasma treatment system which is capable of treating larger samples or more samples per cycle and includes many application specific configurations.
